Multi-drop profile controller

Multi Drop Profile Controller is programmable current controller system suitable for battery manufacturing.
Programmable current and time for charging, discharging and pause
Direct 75mV shunt interface for actual current feedback
Built in PI close loop adjusts the current reference output to set current

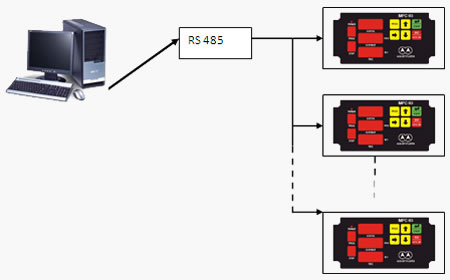

Single PC can monitor multiple MPC-03 controllers on a single party line, this enables viewing status of all chargers simultaneously.
Large LED display for viewing status, programs from longer distance
Keyboard for selection and editing of program, execution control
Multiple program storage
Configurable for wide range of current in three ranges
In cycle display of actual current and elapsed time
Memory retention: Automatic continuation of execution after power interruption
Loop command available for intermittent charge/discharge with time base in sec.
Automatic data output issued in charge, discharge and pause for external data logger
Additional data logging events can be generated with Data and EOF commands for external data logger
Terminal Voltage monitoring at display
Ampere / Hour measurement and display
Windows Based PC Software for viewing program, step command, actual current, voltage, AH, programmed step time.
Facilities through PC to edit, download to MPC-03, start, stop and interrupt the programs.
Maximum 250 number of MPC - 03 on one PC.
Maximum 31 number of MPC - 03 on one party line. Party line can be extended by putting repeaters.
