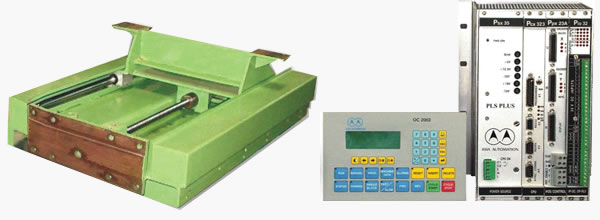

Back gauge controller

Salient Features:

  1. Two speed / servo motor control
  2. Program/Manual/Single block/Auto modes
  3. Rake angle & cutting length control (timer based) for shearing control only)
  4. Closed loop control of X axis.
  5. 128 program storage facility each with 15 steps.
Read More
  1. Product counter setting
  2. Unidirectional positioning
  3. Stroke counter display
  4. Elaborate alarms
  5. Rugged Design
  6. Ball screw arrangement
  7. Limit switches for reference & overtravel
  8. Direct coupling of motor with ball screw
  9. Customized design as per the machine size.
  10. AC/DC servo motor, 2 speed motor interface
  11. Easy to fit
